OPEN-SOURCE SCRIPT
LBB + RSI FX Edition
LBB + RSI ForeX Edition (FX) — Version v6.4.8-fx
**Combine Log Bollinger Bands, multi-level RSI signals, optional trend & pin-bar filters, ATR-based optional TP/SL and a compact signal table — all in one overlay.**
### 1. Key Features
* **Logarithmic Bollinger Bands (LBB):**
* Uses log-price SMA and standard deviation to derive upper/lower bands
* Provides a more symmetrical response to percentage-based moves
* **RSI Multi-Level Entries:**
* Generates long signals when price closes below the lower LBB and RSI < 30 / 35 / 40
* Generates short signals when price closes above the upper LBB and RSI > 60 / 65 / 70
* Three “strength” tiers for both buys and sells
* **Signal Filters (optional):**
* **EMA Trend Filter:** only take longs above a 50-period EMA or shorts below it
* **Pin-Bar Filter:** require a clear wick-to-body ratio on the signal candle
* **Confirmed Candle:** wait for candle close before signaling
* **ATR Display (optional):** show current ATR on the signal table
* **Flexible TP/SL Settings:**
* **Static (pips) or Dynamic (ATR-based) TP/SL**
* Toggle between pips and ticks for FX precision
* Minimum pip/tick threshold to avoid overly tight stops
* Separate TP/SL controls for longs and shorts
* **Visuals & Alerts:**
* Color-coded shapes for each RSI tier (green/orange/yellow for buys; blue/purple/red for sells)
* Customizable display of Bollinger Bands, ATR, signal table and win-rate stats
* Built-in `alertcondition` for each tier with clear emoji & strength label
* **Compact Signal Table:**
* Shows 📈/📉 entry price, RSI, ATR (if enabled), pin-bar ✔/–, timestamp (with UTC offset) and win-rate placeholder
---
### 2. Inputs & Groups
| Group | Input | Default | Notes |
| ---------------------- | ------------------------------------------ | ------- | ------------------------------------- |
| **Indicator Settings** | LBB Period (`lbbLength`) | 20 | Length for log-price SMA |
| | LBB Multiplier (`lbbMult`) | 2.0 | Std dev multiplier |
| | RSI Period (`rsiLength`) | 14 | |
| | ATR Period (`atrLength`) | 14 | |
| | Show ATR (`showATR`) | true | Toggles ATR in table |
| | UTC Offset Hours (`timeOffsetHours`) | 0 | Adjust table time to your timezone |
| **Signal Filters** | Use EMA Trend Filter (`useTrendFilter`) | false | |
| | EMA Period (`emaPeriod`) | 50 | |
| | Use Pin-Bar Filter (`usePinBarFilter`) | false | |
| | Pin-Bar Ratio (`pinBarRatio`) | 2.0 | Wick-to-body minimum |
| | Only on Confirmed Candle (`onlyConfirmed`) | false | |
| **TP/SL Settings** | Show TP/SL for Long (`showLongTpSl`) | false | |
| | Show TP/SL for Short (`showShortTpSl`) | false | |
| | Use Dynamic TP/SL (`useDynamicTpSl`) | false | ATR × multiplier |
| | TP/SL in Ticks (`useTicks`) | false | Instead of pips |
| | Min TP/SL Threshold (`minTpSlThreshold`) | 10.0 | In pips |
| | TP Long (pips) (`tpLongPips`) | 20 | Static targets |
| | SL Long (pips) (`slLongPips`) | 10 | |
| | TP Short (pips) (`tpShortPips`) | 20 | |
| | SL Short (pips) (`slShortPips`) | 10 | |
| | ATR Multiplier for TP (`atrMultiplierTP`) | 1.5 | |
| | ATR Multiplier for SL (`atrMultiplierSL`) | 1.0 | |
| **Visual Settings** | Show Signal Shapes (`showShapes`) | true | |
| | Show Bollinger Bands (`showBands`) | true | |
| | Show Statistics (`showStats`) | true | Win-rate currently placeholder “NaN%” |
---
### 3. Calculation Overview
1. **Log Bollinger Bands**
```pinescript
logClose = math.log(close)
logBasis = ta.sma(logClose, lbbLength)
logDev = lbbMult * ta.stdev(logClose, lbbLength)
lowerBand = math.exp(logBasis - logDev)
upperBand = math.exp(logBasis + logDev)
basisBand = math.exp(logBasis)
```
2. **RSI & ATR**
```pinescript
rsi = ta.rsi(close, rsiLength)
atrVal = ta.atr(atrLength)
```
3. **Pin-Bar Detection**
```pinescript
body = math.abs(close - open)
upperWick = high - math.max(close, open)
lowerWick = math.min(close, open) - low
isPinBarBull = lowerWick > body * pinBarRatio and upperWick < body
isPinBarBear = upperWick > body * pinBarRatio and lowerWick < body
```
4. **Trend & Confirmation Filters**
```pinescript
emaTrend = ta.ema(close, emaPeriod)
trendLong = close > emaTrend
trendShort = close < emaTrend
trendOkLong = useTrendFilter ? trendLong : true
trendOkShort= useTrendFilter ? trendShort: true
signalOk = onlyConfirmed ? barstate.isconfirmed : true
```
5. **Entry Conditions**
* **Long**: `close < lowerBand` + RSI < {30, 35, 40} + filters
* **Short**: `close > upperBand` + RSI > {60, 65, 70} + filters
---
### 4. Signal Plotting & Alerts

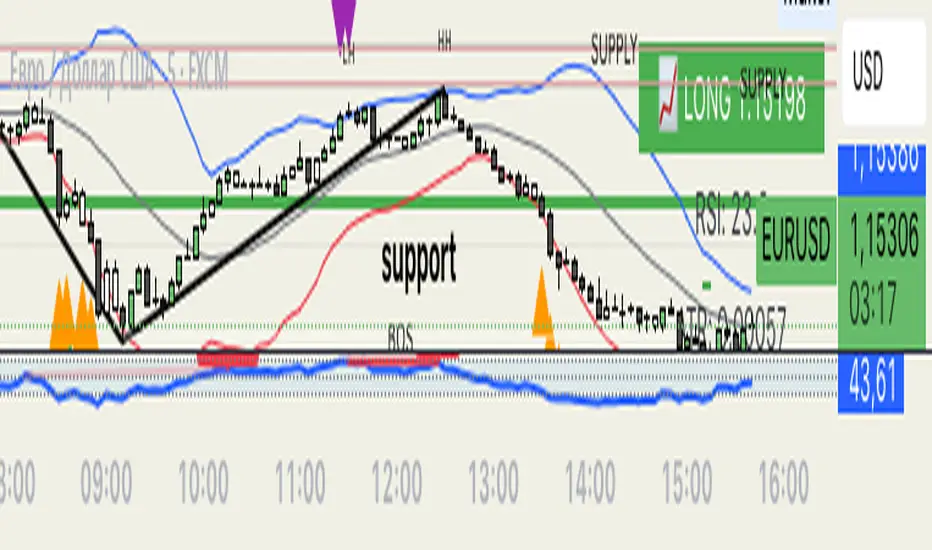

* **Shapes on Chart**
* 📈 LONG signals plotted below bar in green/orange/yellow triangles, sized by strength
* 📉 SHORT signals plotted above bar in blue/purple/red inverted triangles
* **Alert Conditions**
```pinescript
alertcondition(cond_rsi30_long, title="LBB LONG RSI <30", message="📈 LONG signal | Strong Buy | {{ticker}} @ {{close}} | {{interval}}")
// … and similarly for other tiers
```
---
### 5. TP/SL Management
1. **Delta Calculation**
```pinescript
rawTP = atrVal * atrMultiplierTP * tfMultiplier
rawSL = atrVal * atrMultiplierSL * tfMultiplier
pip = syminfo.mintick
pipMult = pip == 0.00001 ? 10 : pip == 0.01 ? 1 : 100
unitMult = useTicks ? 1 : pipMult
minDelta = minTpSlThreshold * pip * tfMultiplier * unitMult
```
2. **Dynamic TP/SL Lines**
* Deletes old lines and draws new dashed lines at `entry ± max(rawΔ, minDelta)` when signaled and `useDynamicTpSl` is enabled.
3. **Manual TP/SL Labels**
* On each bar checks if price hit the TP or SL level and drops a permanent label “TP @ …” or “SL @ …”.
---
### 6. Compact Signal Table
Positioned in the top-right corner, updates on each new signal:
| Column | Content |
| ------ | ----------------------------------------- |
| 0 | 📈/📉 Entry price with color background |
| 1 | `RSI: XX` |
| 2 | `ATR: X.XXXXX` (if enabled) |
| 3 | `PinBar: ✔` or `–` |
| 4 | `Time: DD-MM-YY HH:mm` (with UTC offset) |
| 5 | `Win Rate: NaN%` (placeholder if enabled) |
---
### 7. Recommendations & Best Practices
* **Timeframe Selection:** works best on FX pairs; adjust `tfMultiplier` sensitivity by avoiding ultra-low minute charts unless needed.
* **Trend Filter:** enable `useTrendFilter` to align signals with broader trend, reducing noise.
* **Pin-Bar Filter:** turn on `usePinBarFilter` when you need higher-quality reversal candles.
* **Dynamic TP/SL:** use ATR-based exits (`useDynamicTpSl=true`) to adapt stop levels to changing volatility.
* **Ticks vs Pips:** for very tight markets (e.g. FX majors on low timeframes), switch to ticks.
* **Backtest Thoroughly:** before deploying alerts, test across multiple symbols/timeframes to tune multipliers and thresholds.
* **Alert Integration:** set up TradingView alerts using the built-in `alertcondition` names for fully automated notifications.
