Updated

Cleaner Screeners Library

Library "cleanscreens"

Screener Panel.

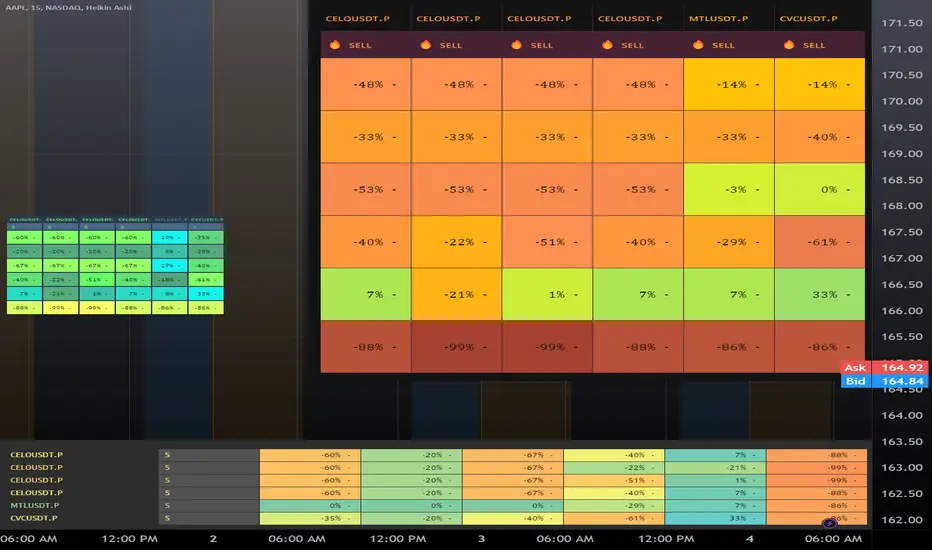

This indicator displays a panel with a list of symbols and their indications.
It can be used as a screener for multiple timess and symbols
in any timeframe and with any indication in any combination.
#### Features
Multiple timeframes
Multiple symbols
Multiple indications per group
Vertical or horizontal layouts
Acceepts External Inputs
Customizable colors with 170 presets included (dark and light)
Customizable icons
Customizable text size and font
Customizable cell size width and height
Customizable frame width and border width
Customizable position
Customizable strong and weak values
Accepts any indicator as input
Only 4 functions to call, easy to use
#### Usage
Initialize the panel with _paneel = cleanscreens.init()
Add groupd with _screener = cleanscreens.Screener(_paneel, "Group Name")
Add indicators to screeener groups with cleanscreens.Indicator(_screener, "Indicator Name", _source)
Update the panel with cleanscreens.display(_paneel)

Thanks @ PineCoders , and the Group members for setting the bar high.

# local setup for methods on our script
Pine Script®
import kaigouthro/cleanscreen/1 method Screener ( panel p, string _name) => cleanscreens.Screener ( p, _name) method Indicator ( screener s , string _tf, string name, float val) => cleanscreens.Indicator ( s , _tf, name, val) method display ( panel p ) => cleanscreens.display ( p )

init(_themein, loc)
# Panel init
> init a panel for all the screens

Parameters:
_themein (string): string: Theme Preset Name
loc (int): int :
1 = left top,
2 = middle top,
3 = right top,
4 = left middle,
5 = middle middle,
6 = right middle,
7 = left bottom,
8 = middle bottom,
9 = right bottom
Returns: panel

method Screener(p, _name)
# Screener - Create a new screener
### Example:
Pine Script®
cleanscreens.new(panel, 'Crpyto Screeners')

Namespace types: panel
Parameters:
p (panel)
_name (string)

method Indicator(s, _tf, name, val)
# Indicator - Create a new Indicator
### Example:
Pine Script®
cleanscreens.Inidcator('1h', 'RSI', ta.rsi(close, 14))

Namespace types: screener
Parameters:
s (screener)
_tf (string)
name (string)
val (float)

method display(p)
# Display - Display the Panel
### Example:
Pine Script®
cleanscreens.display(panel)

Namespace types: panel
Parameters:
p (panel)

indication
single indication for a symbol screener
Fields:
name (series string)
icon (series string)
rating (series string)
value (series float)
col (series color)
tf (series string)
tooltip (series string)
normalized (series float)
init (series bool)

screener
single symbol screener
Fields:
ticker (series string)
icon (series string)
rating (series string)
value (series float)
bg (series color)
fg (series color)
items (indication[])
init (series bool)

config
screener configuration
Fields:
strong (series float)
weak (series float)
theme (series string)
vert (series bool)
cellwidth (series float)
cellheight (series float)
textsize (series string)
font (series int)
framewidth (series int)
borders (series int)
position (series string)

icons
screener Icons
Fields:
buy (series string)
sell (series string)
strong (series string)

panel
screener panel object
Fields:
items (screener[])
table (series table)
config (config)
theme (theme type from kaigouthro/theme_engine/1)
icons (icons)

Release Notes

v2

Quick fixed the markdown shortcuts or local use, and an error in screener descript

Added:
method decorate(p, t)
Namespace types: panel
Parameters:
p (panel)
t (varient type from kaigouthro/theme_engine/1)

Updated:
init(_themein, loc)
# Panel init
> init a panel for all the screens

Pine Script®

import kaigouthro/cleanscreen/2 method Screener ( cleanscreen.panel p , string _name ) => cleanscreens.Screener ( p, _name) method Indicator ( cleanscreen.screener s , string _tf, string name, float val ) => cleanscreens.Indicator ( s , _tf, name, val) method display ( cleanscreen.panel p ) => cleanscreens.display ( p ) // Theme names for the theme input a botom (place here) string GRP1 = "Settings" // init panel with theme and location var loc = input.int(9, ' Table loc (1-9)', 1, 9) var _panel = init(input.string(SILK, 'Theme Choice', options = ["SEE ANNOTATION"]), loc) var tfInput = input.timeframe("", "Higher timeframe", group = GRP1) if barstate.isfirst panel.config.theme := input.string ( 'light' , "Theme Variewnt" , options=['light' , 'dark'] , inline='ic' , group='Icons' ) panel.config.cellwidth := input.float ( 7.5 , 'cellwidth' , step=0.5 , inline = "Cellsize" , group=GRP1 ) panel.config.cellheight := input.float ( 7.5 , 'cellheight' , step=0.5 , inline = "Cellsize" , group=GRP1 ) panel.config.textsize := input.string ( size.auto , 'Textsize' , options=[size.auto, size.small, size.normal, size.large, size.huge] , inline = "set" , group=GRP1 ) panel.config.font := input.int ( 15 , 'Font' , 1 , 17 , inline = "set" , group=GRP1 ) panel.config.framewidth := input.int ( 10 , 'Framewidth' , 0 , 20 , inline = "set" , group=GRP1 ) panel.config.borders := input.int ( 1 , 'Borders' , -1 , 10 , inline = "set" , group=GRP1 ) panel.config.vert := input.bool ( true , 'vert' ) //int ( 1 , 'Borders' , -1 , 10 ) // Icons panel.icons.strong := input.string('💸', 'Strong ✼', inline='ic', group='Icons') panel.icons.buy := input.string('💰', 'Buy ⇡', inline='ic', group='Icons') panel.icons.sell := input.string('🔥', 'Sell ⇣', inline='ic', group='Icons') // Add groupd with _screener = _paneel.Screener("Group Name") // Add indicartors to screeener groups with _screener.Indication( "Indicator Name", _source) // Update the panel with _paneel.display(_paneel)

Parameters:
_themein (string): string: Theme Preset Name
loc (int): int :
1 = left top,
2 = middle top,
3 = right top,
4 = left middle,
5 = middle middle,
6 = right middle,
7 = left bottom,
8 = middle bottom,
9 = right bottom
Returns: panel

method Screener(p, _name)
# Screener - Create a new screener

Example:

Pine Script®

cleanscreen.Screeneer(panel, 'Crpyto Screeners')

Namespace types: panel
Parameters:
p (panel)
_name (string)

method Indicator(s, _tf, name, val)
# Indicator - Create a new Indicator

Example:

Pine Script®

cleanscreen.Inidcator('1h', 'RSI', ta.rsi(close, 14))

Namespace types: screener
Parameters:
s (screener)
_tf (string)
name (string)
val (float)

method display(p)
# Display - Display the Panel

Example:

Pine Script®

cleanscreen.display(panel)

Namespace types: panel
Parameters:
p (panel)

indication
single indication for a symbol screener
Fields:
name (series string): name of the indication
icon (series string): icon name
rating (series string): rating
value (series float): value
col (series color): color of the indication
tf (series string): timeframe
tooltip (series string): tooltip text
normalized (series float): color value
init (series bool): init

screener
single symbol screener
Fields:
ticker (series string): ticker name
icon (series string): icon name
rating (series string): rating
value (series float): value
bg (series color): background color
fg (series color): foreground color
items (indication[]): list of indications
init (series bool): init

config
screener configuration
Fields:
strong (series float): strong value
weak (series float): weak value
theme (series string): theme name
vert (series bool): vertical layout
cellwidth (series float): cell width
cellheight (series float): cell height
textsize (series string): text size
font (series int): font index
framewidth (series int): frame width
borders (series int): border width
position (series string): position

icons
screener Icons
Fields:
buy (series string): buy icon
sell (series string): sell icon
strong (series string): strong icon

panel
screener panel object
Fields:
items (screener[]): list of symbols
table (series table): table object
config (config): config object
theme (theme type from kaigouthro/theme_engine/1)
icons (icons): icons object

Release Notes

v3

Dramatic speed increase.

Pine library

In true TradingView spirit, the author has published this Pine code as an open-source library so that other Pine programmers from our community can reuse it. Cheers to the author! You may use this library privately or in other open-source publications, but reuse of this code in publications is governed by House Rules.
