Waves

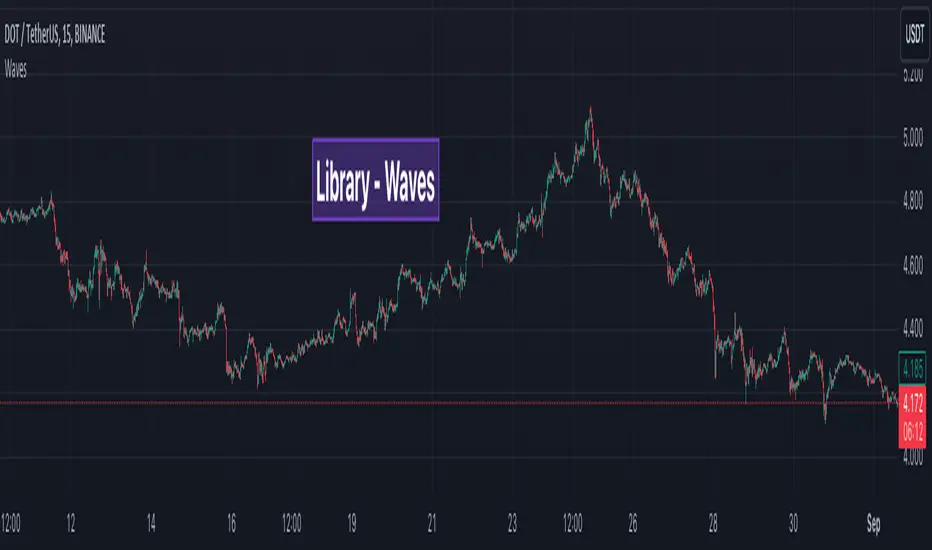

Library "Waves"
Methods for elliot wave detection

method delete(this)
deletes the subwave drawing
Namespace types: Subwave
Parameters:
this (Subwave): Subwave object to be deleted
Returns: deleted subwave object

method delete(this)
deletes the wave drawing and the corresponding subwaves
Namespace types: Wave
Parameters:
this (Wave): Wave object to be deleted
Returns: deleted wave object

method createWave(pivot, lineColor, waves, limit)
Create wave object
Namespace types: zg.Pivot
Parameters:
pivot (Pivot type from Trendoscope/Zigzag/7): pivot object where the wave needs to be created
lineColor (color): color of the wave to be drawn
waves (array<Wave>): array of existing waves
limit (int): max number of waves to be shown in the chart
Returns: wave object created

method createSubWaves(wave, subwavePivots)
Create sub waves for the wave
Namespace types: Wave
Parameters:
wave (Wave)
subwavePivots (array<SubwavePivots>): array of sub wave pivots
Returns: wave object created

method draw(subWave)
Draw subwave
Namespace types: Subwave
Parameters:
subWave (Subwave)
Returns: subwsubWave object

method draw(wave, limitSubwaves)
Draw Wave
Namespace types: Wave
Parameters:
wave (Wave): Wave object to be drawn
limitSubwaves (bool): limit the number of subwave combinations within the wave
Returns: wave object

method checkMotiveWave(prices)
based on the price array, check if there is motive wave and identify the type
Namespace types: array<float>
Parameters:
prices (array<float>): float array of prices
Returns: WaveType representing the identified wave type. na otherwise

method scanMotiveWave(pivot, lastPivot, existingWaves, allowedTypes)
Scan for motive wave
Namespace types: zg.Pivot
Parameters:
pivot (Pivot type from Trendoscope/Zigzag/7): Zigzag pivot that will be checked for motive wave
lastPivot (Pivot type from Trendoscope/Zigzag/7): previous Zigzag pivot
existingWaves (array<Wave>): array of existing waves
allowedTypes (array<WaveType>): allowed Wave types to filter them
Returns: array of subwave pivots

SubwavePivots
SubwavePivots represents the sub pivots of the main wave
Fields:
waveType (series WaveType): Type of the Wave
indices (array<int>): Bar index values of sub waves
subPivots (array<Pivot> type from Trendoscope/Zigzag/7): sub pivot objects of the wave

Subwave
Subwave represents the drawing of sub waves
Fields:
waves (array<Line> type from Trendoscope/Drawing/1): array of sub wave lines
points (array<Label> type from Trendoscope/Drawing/1): Array of subwave pivot labels
subwavePivots (SubwavePivots): array of subwave pivots being drawn

Wave
Wave object type
Fields:
pivot (Pivot type from Trendoscope/Zigzag/7): starting point of the wave
wave (Line type from Trendoscope/Drawing/1): Line representing the wave
waveLabel (Label type from Trendoscope/Drawing/1): label containing wave details
subWaves (array<Subwave>): array of sub waves

Release Notes

v2

Updated:
method createWave(pivot, lineColor, waves, limit)
Create wave object
Namespace types: zg.Pivot
Parameters:
pivot (Pivot type from Trendoscope/Zigzag/10): pivot object where the wave needs to be created
lineColor (color): color of the wave to be drawn
waves (array<Wave>): array of existing waves
limit (int): max number of waves to be shown in the chart
Returns: wave object created

method scanMotiveWave(pivot, lastPivot, existingWaves, allowedTypes)
Scan for motive wave
Namespace types: zg.Pivot
Parameters:
pivot (Pivot type from Trendoscope/Zigzag/10): Zigzag pivot that will be checked for motive wave
lastPivot (Pivot type from Trendoscope/Zigzag/10): previous Zigzag pivot
existingWaves (array<Wave>): array of existing waves
allowedTypes (array<WaveType>): allowed Wave types to filter them
Returns: array of subwave pivots

SubwavePivots
SubwavePivots represents the sub pivots of the main wave
Fields:
waveType (series WaveType): Type of the Wave
indices (array<int>): Bar index values of sub waves
subPivots (array<Pivot> type from Trendoscope/Zigzag/10): sub pivot objects of the wave

Subwave
Subwave represents the drawing of sub waves
Fields:
waves (array<Line> type from Trendoscope/Drawing/2): array of sub wave lines
points (array<Label> type from Trendoscope/Drawing/2): Array of subwave pivot labels
subwavePivots (SubwavePivots): array of subwave pivots being drawn

Wave
Wave object type
Fields:
pivot (Pivot type from Trendoscope/Zigzag/10): starting point of the wave
wave (Line type from Trendoscope/Drawing/2): Line representing the wave
waveLabel (Label type from Trendoscope/Drawing/2): label containing wave details
subWaves (array<Subwave>): array of sub waves

Release Notes
